Roof Tile Sheet Roll Forming Machine
Roof Tile Sheet Roll Forming Machine
Roof Tile Sheet Roll Forming Machine

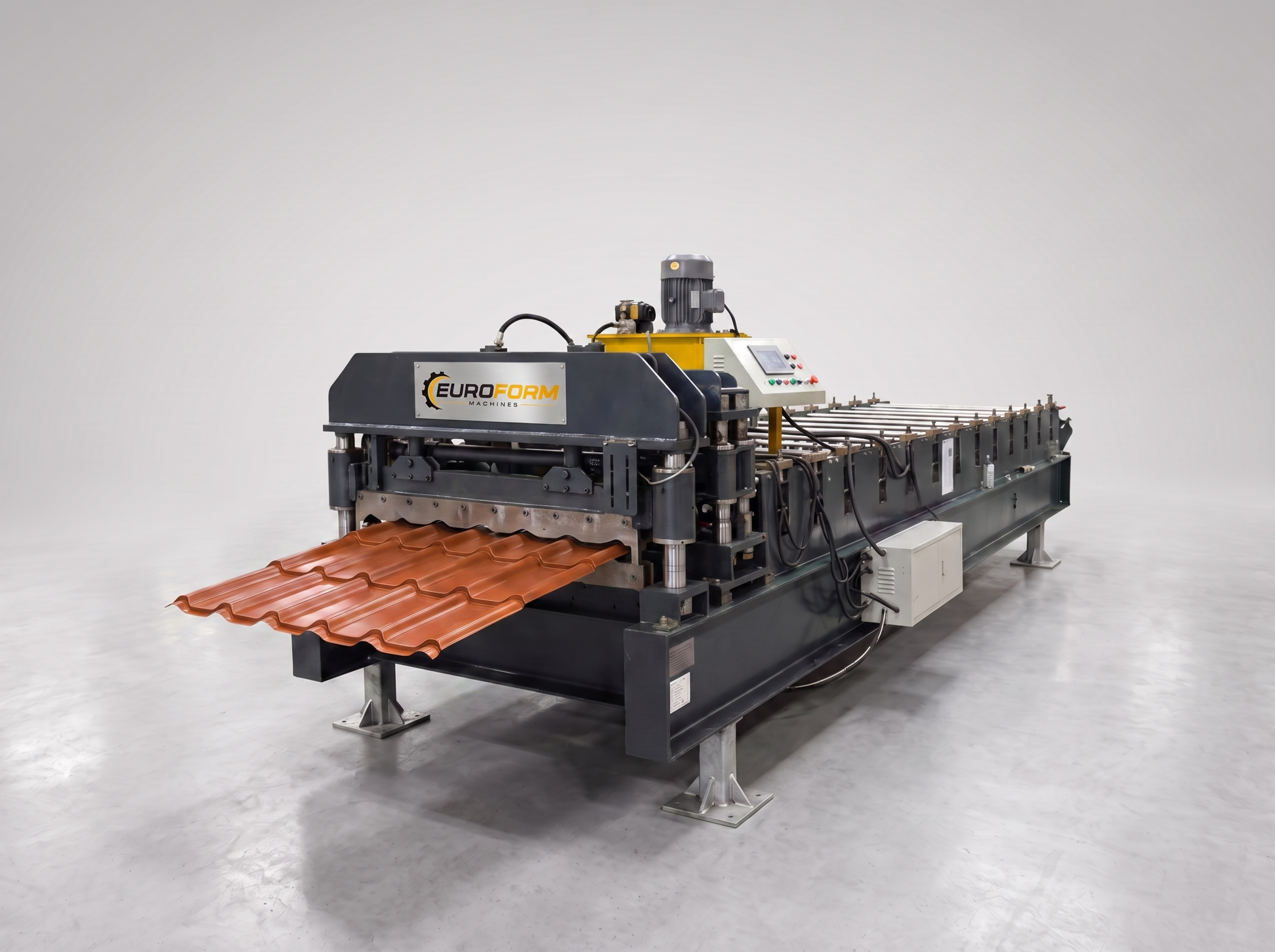

Professional automatic line for continuous production of metal roof tile sheets. The machine produces metal roofing panels that replicate the look of classic tile, ideal for modern roofing systems.
Features
- High-precision automatic operation
- Metal roof tile sheet production
- Continuous production
- Robust steel construction
- Hydraulic cutting system
- PLC control system
Contact us for more information and pricing.
Technical Specifications
| Profile | Mediteran — tile sheet, cover width 1100 mm |
| Entry sheet width | 1250 mm |
| Sheet thickness | 0.3 – 0.7 mm |
| Production speed | 2 m/min |
| Cutting | Hydraulic, 5.5 kW motor |
| Roller drive motor | 7.5 kW |
| Shaft diameter | 70 mm |

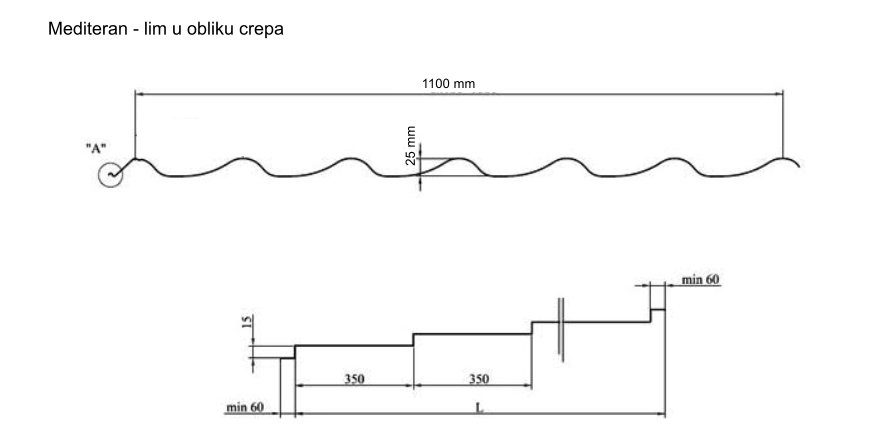

Technical drawings
